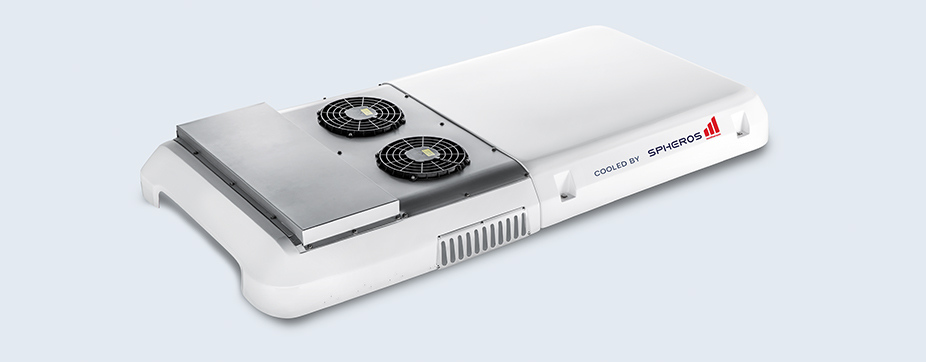

CC165-E

Reliable climate comfort for e-powered midi buses

CC165-E complements our range of air conditioning of e-powered midi buses. The compliant design has been adapted to the demands, convinces with high air flow, best reliability, thermal comfort and easy maintenance.

Highlights

CC165-E

High airflow maintain the best performance even at very high ambient temperature
Reduced number of parts facilitates assembly, installation and maintenance
Optimised energy through intelligence control of compressor and electric fans/blowers
Safety against leakage due to hermetically sealed refrigerant circle

CC165-E

Integrated compressor, no application with refrigerant hoses necessary
Designed for R134a / R407C refrigerant
Electric compressor with integrated inverter (EDC)

Technical data

CC165-E
Max. cooling capacity (R134A/ R407C) (in kW) 14 / 16
Evaporator air flow (m³/h) 4,400 (4 blowers)
Airflow (m³/h) condenser 5,600 (2 fans)
Rated HV supply 450-800 VDC
Current consumption Nominal - 45A
Max. 8A
260V DC (LV)
600V DC (HV)
Weight (kg) 150
Dimension (mm) 1,886 x 1,775 x 181
Fresh Air optional
Controller (variable speed /10 speed) SC620
Converter (24 V DC) Optional
